Spiral conveyor systems are widely used in food processing applications such as freezing, cooling, proofing, baking, drying, and cooking. A well-designed spiral conveyor belt can provide continuous product handling, high production capacity, and excellent use of vertical space while maintaining a compact footprint.

However, like any industrial conveying system, spiral conveyors can experience problems during long-term operation. Belt tracking issues, excessive wear, belt elongation, abnormal tension, damaged links, and poor cleaning can reduce production efficiency and shorten belt service life.

For food processors using spiral freezer belts, spiral cooler belts, spiral proofer belts, and self-stacking spiral belts, understanding the causes of these problems is essential for maintaining reliable production.

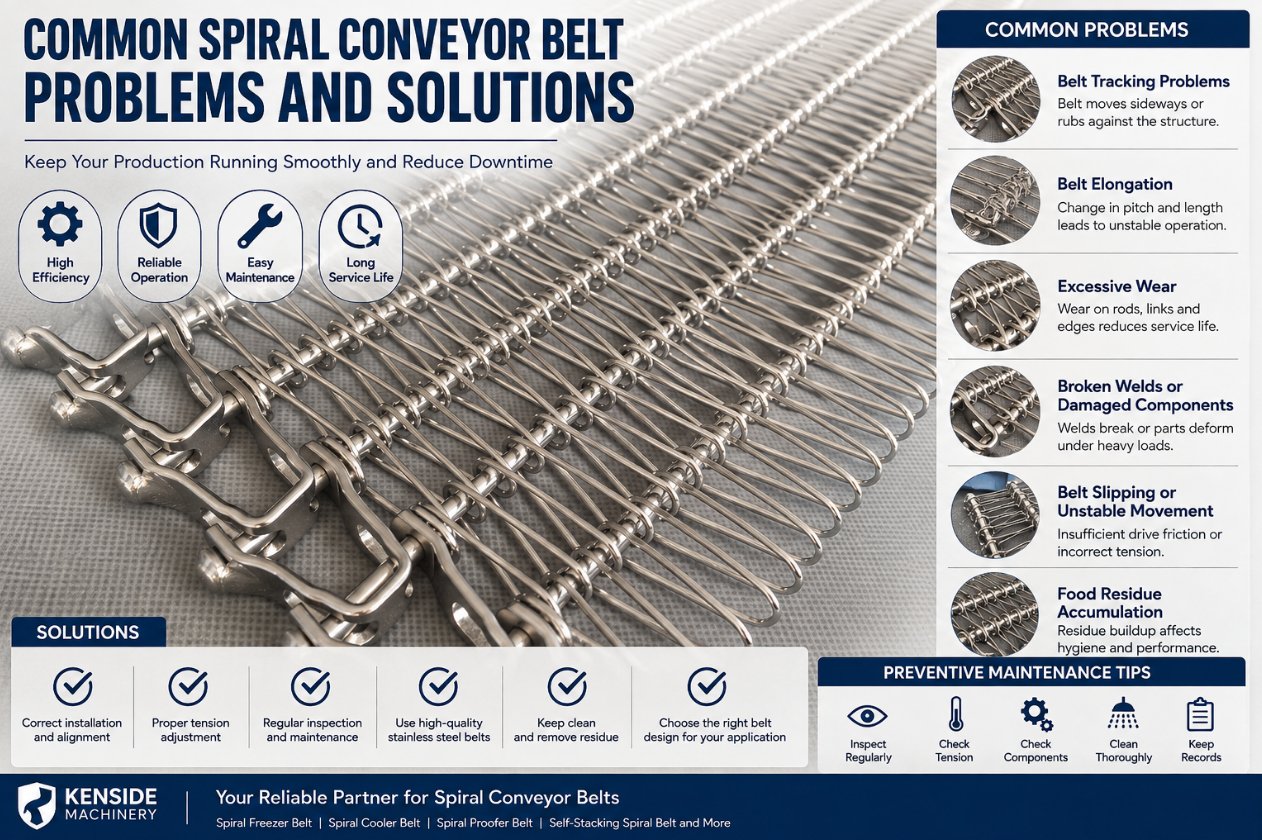

In this guide, Kenside Machinery explains some of the most common spiral conveyor belt problems and solutions, together with practical maintenance recommendations.

1. Spiral Conveyor Belt Tracking Problems

One of the most common problems in a spiral conveyor system is incorrect belt tracking.

A spiral belt must maintain stable positioning as it travels through the spiral structure. If the belt moves laterally, rubs against the conveyor structure, or fails to stack correctly, it can cause excessive edge wear and potentially damage other components.

Common Causes

Spiral conveyor belt tracking problems may be caused by:

· Incorrect belt installation

· Improper belt tension

· Misaligned conveyor components

· Uneven wear of sprockets or drive components

· Incorrect spiral diameter or cage geometry

· Damaged or deformed belt links

· Excessive friction between belt and supporting components

For self-stacking spiral systems, lateral stability is particularly important because multiple belt tiers are stacked together. Technical literature on self-stacking belts identifies lateral displacement and wear between adjacent tiers as important reliability considerations.

Solution

First, inspect the entire belt path and determine where the belt begins to move out of position. Check the belt tension, sprockets, drive system, support components, and belt geometry.

If the belt has been permanently deformed or has significant wear, adjustment alone may not solve the problem. In such cases, replacing damaged belt sections or installing a correctly manufactured replacement spiral conveyor belt may be necessary.

2. Excessive Belt Tension

Incorrect tension is another common problem with spiral conveyor systems.

Unlike a simple straight conveyor, a spiral conveyor belt travels through a curved and vertically stacked path. The belt may experience significant mechanical loads as it moves through the spiral.

Excessive tension can increase friction and accelerate wear on the belt, drive components, rods, and supporting surfaces.

Common Causes

Typical causes include:

· Incorrect tension adjustment

· Excessive product loading

· Incorrect belt specifications

· Belt elongation

· Excessive friction

· Problems with the drive system

· Improper installation

Solution

Do not simply increase belt tension when the conveyor experiences slipping or unstable movement.

Instead, check the complete drive and tension system. Verify whether the belt is correctly matched to the spiral conveyor design and whether the operating load is within the system’s intended capacity.

For spiral freezer and cooler applications, the belt specification should be determined according to belt width, pitch, tier height, spiral diameter, product load, operating temperature, and drive configuration.

3. Belt Elongation and Pitch Changes

Belt elongation can occur after long-term operation, especially when a spiral conveyor belt is continuously exposed to high loads and repeated bending.

As the belt operates through a spiral configuration, mechanical stress is repeatedly applied to links, rods, welds, and other connecting components.

Over time, wear can cause changes in belt length and pitch.

Symptoms of Belt Elongation

Operators may notice:

· Increased belt length

· Changes in belt pitch

· Unstable stacking

· Increased belt tension

· Irregular belt movement

· Increased noise

· Difficulty maintaining proper belt tracking

For self-stacking systems, excessive wear between adjacent tiers can also affect the overall stacking geometry.

Solution

Regularly inspect the belt for elongation and wear.

If the belt has only minor elongation, the system may be adjustable depending on its design. If significant wear or deformation has occurred, replacing the affected belt sections or the complete belt may be the better solution.

Choosing the correct material, wire diameter, rod diameter, pitch, link configuration, and belt construction during the original design stage can also help improve service life.

4. Excessive Belt Wear

Spiral conveyor belts operate under continuous mechanical movement, making wear an important factor in long-term performance.

Wear can occur on:

· Belt rods

· Links

· Side plates

· Welded joints

· Belt edges

· Supporting surfaces

· Sprockets

· Drive components

In food processing environments, low temperatures, moisture, cleaning chemicals, and food residues can make operating conditions even more demanding.

Solution

A preventive maintenance program should include regular inspection of the belt and associated components.

Look for:

· Thinning or deformation of components

· Cracked welds

· Bent rods

· Damaged links

· Abnormal edge wear

· Sprocket wear

· Accumulated food residue

If wear is concentrated in one specific area, investigate the root cause rather than simply replacing the damaged belt.

Localized wear may indicate misalignment, excessive friction, incorrect belt tension, or problems with the conveyor structure.

5. Broken Welds or Damaged Belt Components

Welded connections are important structural points on many metal conveyor belts.

In self-stacking spiral conveyor systems, belt components must support both the belt itself and the product load. Repeated mechanical stress can eventually cause fatigue if the belt is incorrectly designed, overloaded, or operated under abnormal conditions.

Common Causes

Potential causes include:

· Excessive belt load

· Repeated impact

· Incorrect belt tension

· Material fatigue

· Poor welding quality

· Misalignment

· Damaged belt components

· Incorrect belt selection

Solution

When a weld failure occurs, replacing the broken component without investigating the cause may only provide a temporary solution.

Inspect the surrounding belt structure and determine whether the failure is isolated or part of a larger wear pattern.

For replacement belts, accurate manufacturing of the belt pitch, rod diameter, link dimensions, belt width, and welding position is critical for proper compatibility with the existing spiral conveyor.

6. Belt Slipping or Unstable Movement

A spiral conveyor belt should move smoothly and continuously.

If the belt slips, surges, or moves irregularly, production may become unstable and products can be damaged.

Possible Causes

· Insufficient drive friction

· Incorrect tension

· Worn drive components

· Incorrect drive settings

· Excessive product load

· Contamination on drive surfaces

· Incorrect belt specifications

In friction-driven spiral systems, the relationship between drive speed, belt speed, friction, and tension is particularly important. Incorrect drive conditions can result in either belt slipping or excessive mechanical stress.

Solution

Check the drive system before increasing belt tension.

Inspect the drive surface, friction components, sprockets, bearings, and belt condition. The operating parameters should be adjusted according to the specific spiral conveyor manufacturer’s requirements.

7. Problems Caused by Low Temperatures

Spiral freezer belts operate in particularly demanding environments.

In spiral freezer systems, stainless steel conveyor belts may be exposed to extremely low temperatures, moisture, condensation, and repeated temperature changes.

These conditions can affect:

· Belt dimensions

· Mechanical clearance

· Lubrication

· Drive performance

· Belt flexibility

· Component wear

A belt designed for a normal-temperature conveyor may not be suitable for a spiral freezing application.

Solution

The belt should be selected according to the actual operating environment.

For spiral freezer belts, important design factors include:

· Stainless steel grade

· Belt construction

· Wire diameter

· Rod diameter

· Pitch

· Belt width

· Spiral diameter

· Product load

· Operating temperature

For demanding food processing environments, stainless steel materials such as 304 or 316/316L may be considered depending on the application and corrosion requirements.

8. Difficult Cleaning and Food Residue Accumulation

Hygiene is one of the most important considerations when using conveyor belts in food processing.

Food residue can accumulate in small gaps, belt edges, weld areas, and poorly designed components. If these areas are difficult to access, cleaning efficiency can be reduced.

A stainless steel conveyor is not automatically sanitary simply because it is made from stainless steel. Conveyor geometry, surface finish, component design, and accessibility all influence cleanability.

Solution

When selecting a food processing conveyor belt, consider cleanability as well as mechanical performance.

A hygienic belt design should:

· Minimize unnecessary gaps

· Reduce food entrapment areas

· Provide suitable open area

· Allow effective cleaning access

· Use appropriate food-grade materials

· Resist corrosion

· Maintain smooth and stable operation

For self-stacking spiral belts, proper edge and interlocking design is particularly important because the belt tiers operate directly against one another.

9. Belt Noise and Vibration

Unusual noise is often an early warning sign of a mechanical problem.

Possible causes include:

· Worn rods or links

· Damaged sprockets

· Excessive belt tension

· Misalignment

· Foreign objects

· Insufficient lubrication of applicable components

· Damaged bearings

· Belt-to-structure contact

Ignoring abnormal noise can allow a small mechanical problem to develop into a major failure.

Solution

When abnormal noise occurs, stop and inspect the conveyor system whenever safe to do so.

Check the belt, drive components, sprockets, bearings, supporting surfaces, and belt alignment.

Preventive inspection is generally more economical than emergency belt replacement after a major failure.

How to Prevent Spiral Conveyor Belt Problems

The best way to reduce spiral conveyor belt failures is to combine correct belt selection with proper installation and preventive maintenance.

1. Select the Correct Belt Design

Not every spiral conveyor requires the same belt.

Depending on the equipment and application, manufacturers may use:

· Self-Stacking Spiral Belt

· Spiral Rod Belt

· Flat Wire Spiral Belt

· Edge Drive Spiral Belt

· Small Radius Spiral Belt

· 360 Weld Spiral Belt

The correct belt should match the conveyor structure and operating conditions.

2. Match the Belt to the Application

The belt design should be selected according to the process.

For example:

Spiral Freezing

A suitable spiral freezer belt should provide stable operation at low temperatures, good airflow, sufficient load capacity, and appropriate corrosion resistance.

Spiral Cooling

A spiral cooler belt should provide reliable product transport while allowing sufficient airflow for efficient heat removal.

Spiral Proofing

A spiral proofer belt should provide stable product handling and suitable open area for controlled temperature and humidity conditions.

Bakery Applications

For bread, pastry, biscuits, and other bakery products, belt design should consider product contact, airflow, cleaning, product release, and the required cooling or baking time.

3. Inspect the Belt Regularly

A preventive inspection program should include:

· Belt tension

· Belt tracking

· Belt pitch

· Rod condition

· Link condition

· Welded joints

· Belt edges

· Sprocket condition

· Drive components

· Bearings

· Supporting surfaces

· Food residue accumulation

Regular inspection can identify early-stage problems before they cause unexpected production downtime.

Why Belt Quality Matters in Spiral Conveyor Systems

A spiral conveyor belt is not simply a material-handling component. It is an important part of the overall spiral processing system.

The belt affects:

· Production capacity

· Product handling

· Airflow

· Freezing or cooling efficiency

· Equipment stability

· Cleaning efficiency

· Maintenance requirements

· Overall operating cost

A properly engineered stainless steel spiral conveyor belt should be manufactured according to the dimensions and requirements of the specific spiral system.

For replacement projects, using an OEM-compatible belt is especially important. Belt width, pitch, rod diameter, link configuration, turn ratio, tier height, and drive arrangement should all be verified before production.

Kenside Machinery: Spiral Conveyor Belt Manufacturer

Kenside Machinery specializes in the manufacturing of stainless steel conveyor belts and spiral conveyor belts for food processing applications.

Our spiral belting solutions are designed for applications including:

· Spiral Freezing

· Spiral Cooling

· Spiral Proofing

· Spiral Baking

· Spiral Drying

· Food Processing

· Bakery Production

· Meat Processing

· Seafood Processing

· Ready Meal Production

We supply different types of spiral conveyor belts, including self-stacking belts, edge drive spiral belts, small radius spiral belts, spiral rod belts, flat wire spiral belts and other customized metal conveyor belts.

For replacement projects, Kenside Machinery can manufacture belts according to OEM specifications and existing equipment dimensions.

If your production line is experiencing spiral conveyor belt tracking problems, excessive wear, belt elongation, damaged links, broken welds, or other belt-related problems, selecting the correct replacement belt can help improve conveyor reliability and reduce unexpected downtime.

Conclusion

Common spiral conveyor belt problems are usually related to belt design, installation, tension, alignment, mechanical wear, operating conditions, or insufficient maintenance.

Early identification of belt tracking problems, excessive wear, elongation, damaged components, and drive issues can significantly reduce the risk of unexpected downtime.

For food processing applications, choosing the correct spiral freezer belt, spiral cooler belt, spiral proofer belt, or self-stacking spiral belt is equally important.

A properly designed and manufactured stainless steel spiral conveyor belt can provide reliable conveying performance, good hygiene, efficient airflow, and long-term service in demanding food processing environments.
