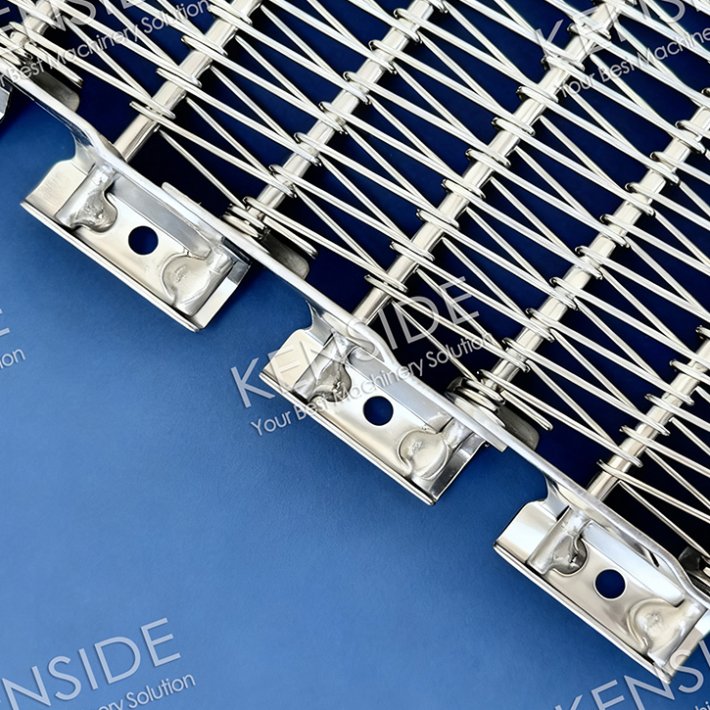

Self Stacking Belt

Overview

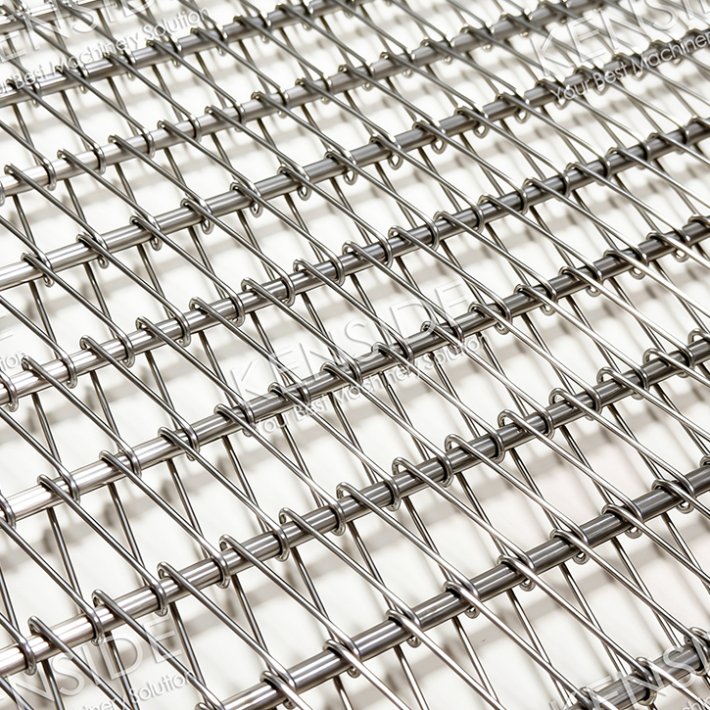

Compared with traditional spiral conveyor belt, the advantages of revolutionary self stacking belt are obvious - more larger throughput, higher energy efficiency, smaller footprint, easier maintenance and replacement with lower cost. Standard duty self stacking belt is designed to fit customer’s existing stacker systems - OEM’s stacker systems, available in all standard belt widths, tier heights and mesh sizes, can be spliced for sectional or complete belt replacements without any modification to drive systems. All parts including links, rods, mesh are manufactured by superior food grade stainless steel - hygienic and durable, providing innovative solutions for your food processing applications.

Construction & Design

Robust Construction for The Most Demanding Food Processing Environments Focus On Food Safety

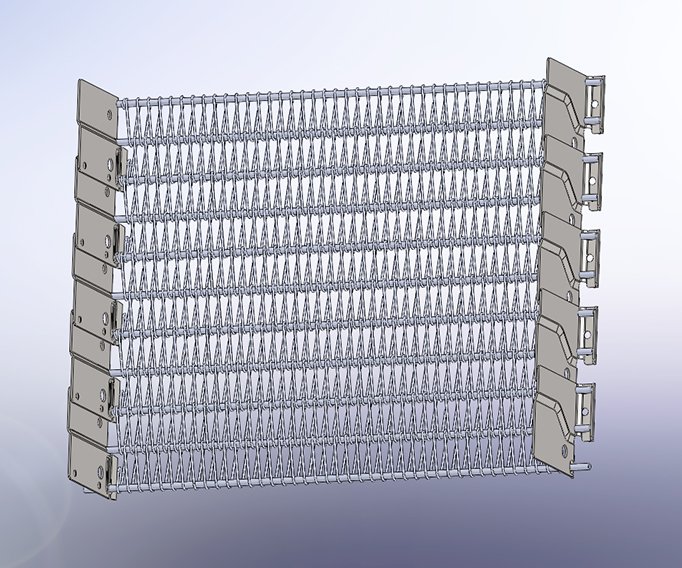

Unique Compact Design

More larger throughput
Higher energy efficiency
Smaller footprint
Easier maintenance and replacement
Lower cost

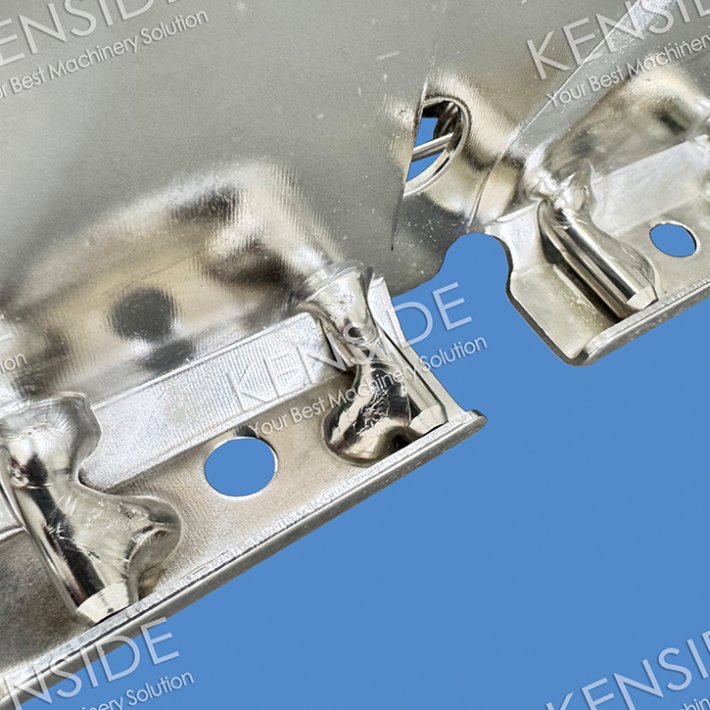

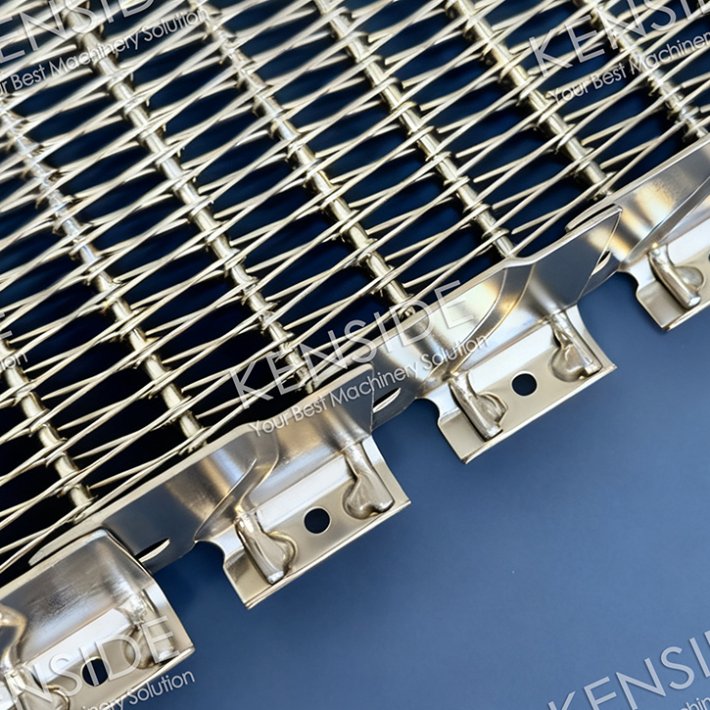

Robust And Solid Weld Joint

Our precision-engineered welds deliver unmatched strength, eliminating the risk of joint failure.
Each weld joint is meticulously crafted to be robust and solid, providing high-strength connection between belt components.

Technical Specifications

Turn Capability	Counter-Clockwise (CCW), Clockwise (CW)
Belt Width	420mm, 510mm, 580mm, 640mm, 660mm, 670mm, 760mm or customized
Rod Diameter	5mm
Pitch	rod pitch is 30mm, link pitch is 59.9mm
Wire Diameter	1.4mm, 1.5mm, 1.6mm, 1.7mm, 1.8mm or customized
Spiral Pitch	6mm, 9mm, 13mm, 20mm or customized
Tier Height	60mm, 80mm, 90mm, 100mm, 120mm, 150mm, 180mm, 220mm or customized
Turn Ratio	1.7 (by turn radius/belt width)

Features and Advantages

Hygiene & Safety

- Smooth Surface From Electropolishing: Hygienic and easy to clean, effectively prevents food residue and bacteria accumulation

- Easy Cleaning: Quick cleaning and disinfection through Clean-in-Place (CIP) systems or manual cleaning

- Food Safety Certified AISI 304 and 316: Meets FDA, USDA, EU and other international standards

Durability & Reliability

- Corrosion Resistance: Withstands humid cooling environments and cleaning chemicals

- Automated Robot Welding: Less wear on spiral system cage bar caps, 30% longer lifespan

- Engineering Construction: Modular design for easy installation and maintenance

- Temperature Stability: High-tensile strength links for a variety of applications

Customization & Support

- Tailored Solutions: Custom-designed to match your specific production requirements

- Technical Expertise: Engineering support from design to installation

- Global Supply: International shipping worldwide

Application Area

Baking Food Processing

Proofing, cooling, freezing and conveying of bread, pastries, cookies, and pizza production lines.

Meat and Poultry Processing

Freezing, cleaning, pickling, cooking, and packaging lines.

Frozen Food and Prepared meals

Frozen pizza, ice cream, frozen vegetables, ready-made meals and ready to eat meal box production line.
