Durable, Sturdy and Long-lasting Belt for Spiral Systems
With excellent spiral performance, KSD® Flat Wire Spiral Belt (also known as honeycomb belt) is a stainless steel spiral belt for food processing, engineered for reliable, high-tension performance in various industrial spiral and turning applications. Its center slotted pickets are precision punched from a kind of premium round edge stainless steel strips - smooth and burr free for easy clean-up. Side reinforcing bar links can reduce belt elongation and extend belt service life, the edge can be welded button or clinched.

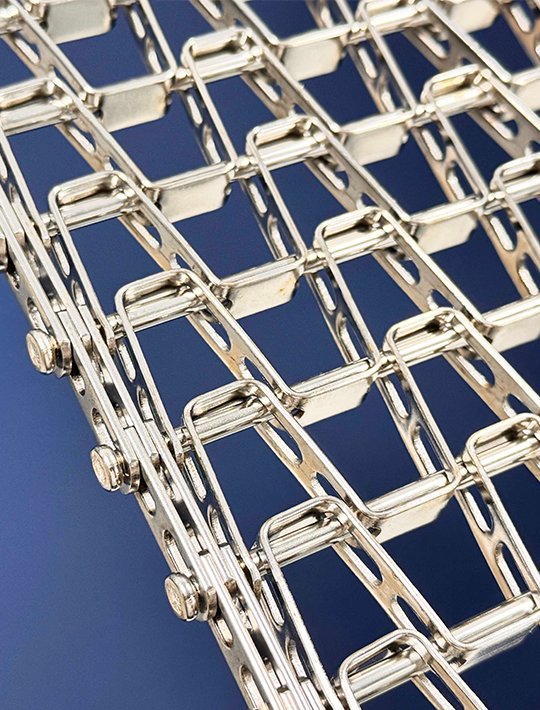

Unlike standard straight running flat wire conveyor belts, KSD® Flat Wire Spiral Belt specially designed for dynamic operation. The long slots replace fixed circular holes, allowing the inner side of the conveyor belt to retract as expected during turns, while the outer side expands, achieving smooth two-way (left and right turns) turns. This precision drive system ensures precise tracking and control even at high speeds.
Long slots allowing the inner side of the conveyor belt to retract during turns, while the outer side expands, ensuring precise tracking and control even at high speeds.

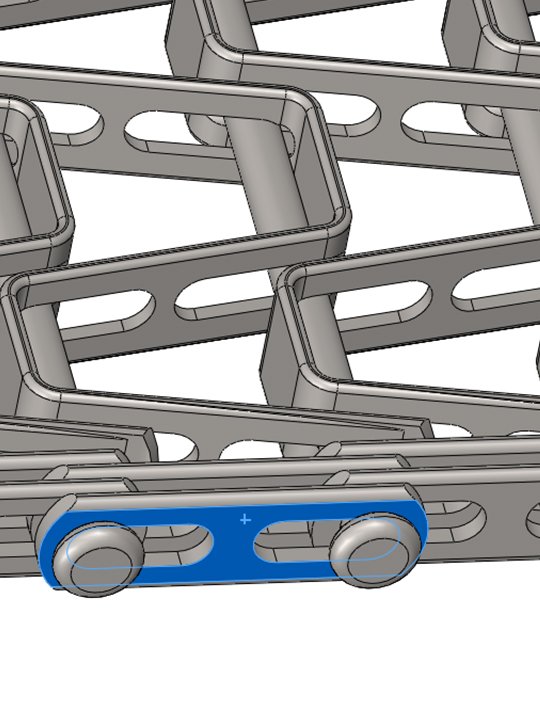

Can significantly reduce belt elongation and extend belt service life
Smooth and burr free for easy clean-up
| Belt Width | 152mm - 1372mm, customized |
| Turn Ratio | 1.6 - 2.5, can be as low as 1.0 by adding one row center link |
| Rod Pitch | 27.5mm, 31.6mm |
| Rod Diameter | 5mm, 6mm |
| Opening Size | 1 x 1, 1/2 x 1, 1/3 x 1, customized |
| Bar Links | heavy duty 2.0/2.5mm thick, single or double both sides |
- Smooth Surface From Electropolishing: Hygienic and easy to clean, effectively prevents food residue and bacteria accumulation
- Easy Cleaning: Quick cleaning and disinfection through Clean-in-Place (CIP) systems or manual cleaning
- Food Safety Certified AISI 304 and 316: Meets FDA, USDA, EU and other international standards
- Corrosion Resistance: Withstands humid cooling environments and cleaning chemicals
- Automated Robot Welding: Less wear on spiral system cage bar caps, 30% longer lifespan
- Engineering Construction: Modular design for easy installation and maintenance
- Temperature Stability: High-tensile strength links for a variety of applications
- Tailored Solutions: Custom-designed to match your specific production requirements
- Technical Expertise: Engineering support from design to installation
- Global Supply: International shipping worldwide
Our food-grade stainless steel conveyor belts, manufactured under strict quality standards EU and FDA, are widely used in frozen food factories, meat processing plants, pre-packaged food production, and equipment manufacturing.
Our food-grade stainless steel conveyor belts, manufactured under strict quality standards EU and FDA, are widely used in frozen food factories, meat processing plants, pre-packaged food production, and equipment manufacturing.
Contact our engineering team for a custom solution tailored to your production requirements.
