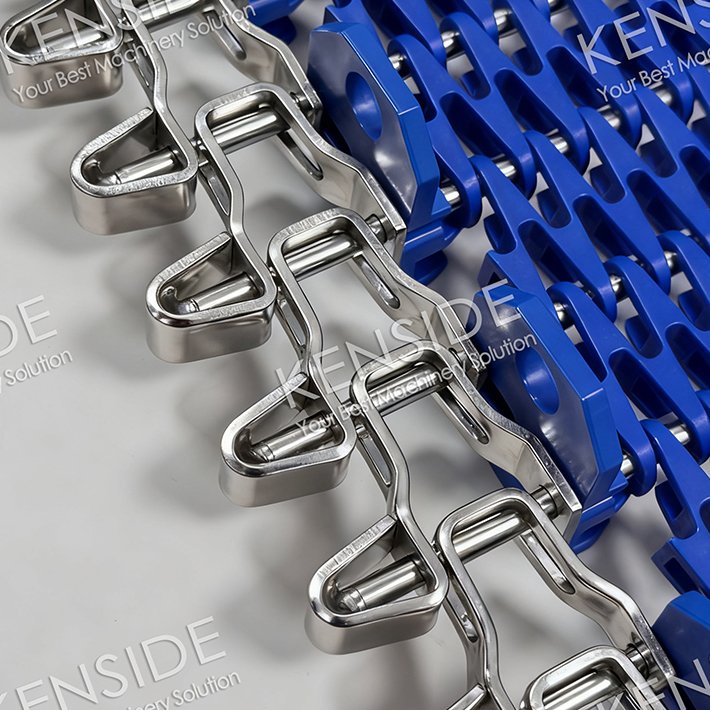

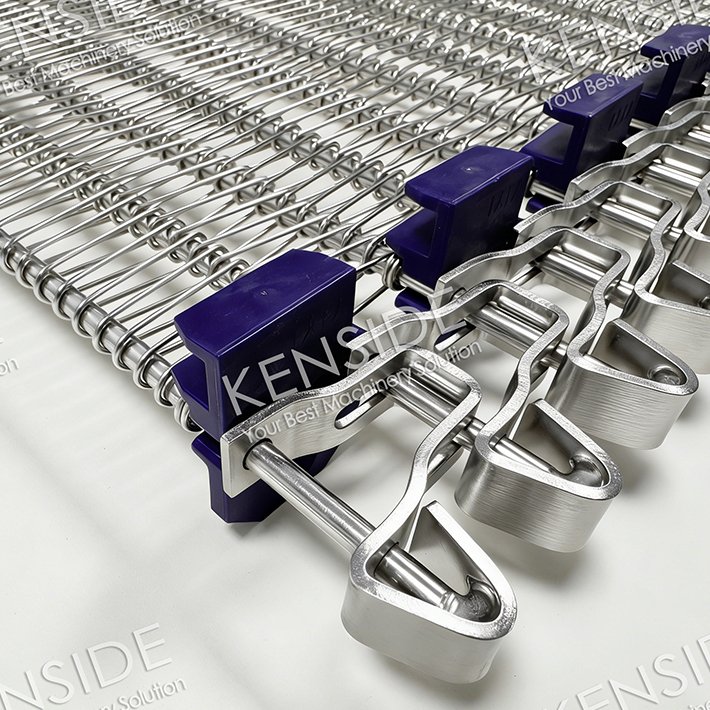

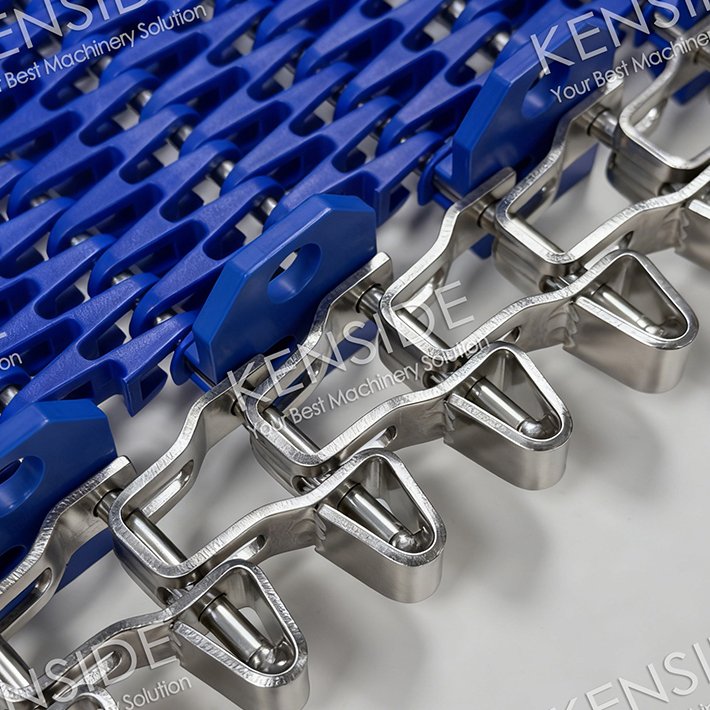

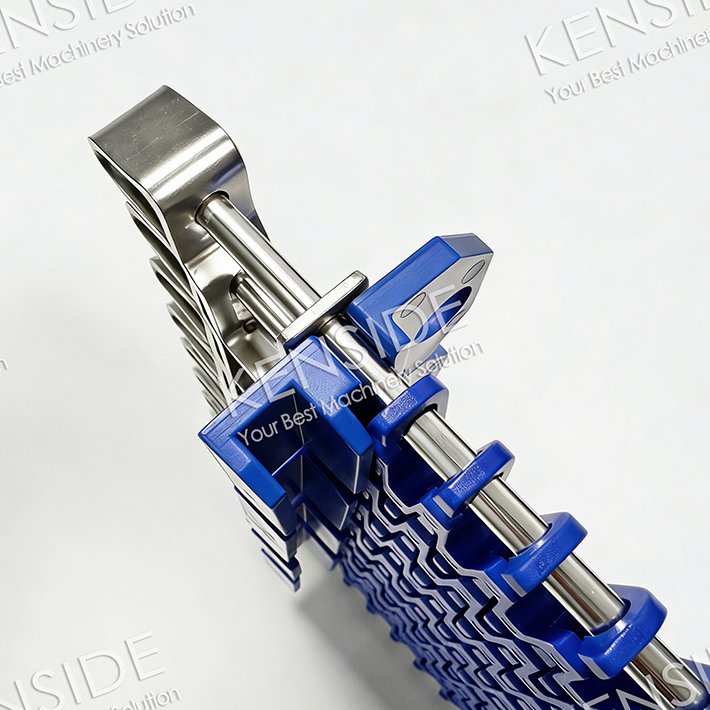

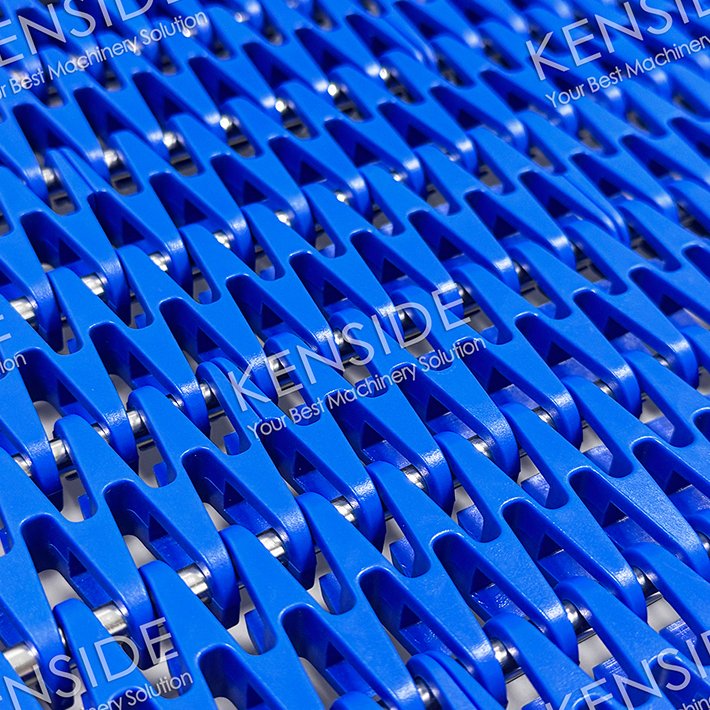

Side Drive Spiral Belt

The Strongest Edge Drive Spiral Belt, More Hygienic and Flexible

Features an advanced cageless and positive edge drive design, KSD® Side Drive Spiral Belt is engineered for efficient product transportation and eliminates belt flipping risks common in traditional spirals systems, and ensuring smooth product movement. It does not necessarily need to be round shape - can be flexibly configured adapts to the production floor layouts, such as ovals, flats.

Inquire Now Add To Cart

Overview

Unique side drive mechanism and utilizing multiple synchronized sprockets for positive side driving, it can get a smooth and continuous product moving. The absence of a rotating central cage enhances sanitation efficiency, making it particularly suitable for industrial food processing applications such as cooling, freezing, and baking processes involving breads, dairy products, and various ready-to-eat foods.

Construction & Design

Robust Construction for The Most Demanding Food Processing Environments Focus On Food Safety

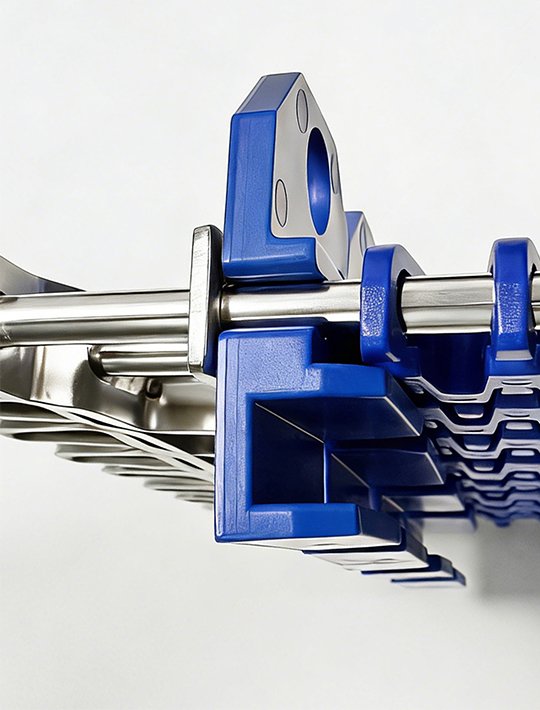

Engineered for Efficient Product Transportation

Eliminates belt flipping risks in traditional spiral systems
Ensuring smooth product movement

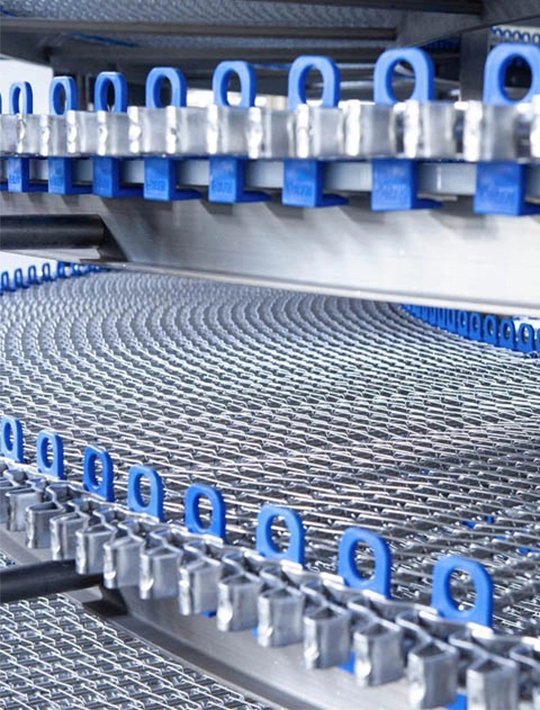

Flexible Layout To Fit Any Workshop Site

Round, oval, flat, or even up and down in the same footprint
Designed to minimize footprint

Technical Specifications

Belt Width	305mm - 1524mm
Turn Ratio	1.6 - 4.0
Rod Diameter	5mm, 6mm
Rod Pitch	31.75mm, 34mm
Mesh	Wire Diameter - 1.2mm, 1.4mm, 1.5mm, 1.6mm, 1.7mm, 1.8mm Spiral Pitch - 4.23mm, 6.35mm, 8.5mm, 10mm, 12.7mm, 15mm, 20mm, customize Plastic POM/PP - Maximum Opening 7mm
Side Guard Height	25mm
Edge Finish	Welding
Surface Treatment	electro-polishing

Features and Advantages

Hygiene & Safety

- Smooth Surface From Electropolishing: Hygienic and easy to clean, effectively prevents food residue and bacteria accumulation

- Easy Cleaning: Quick cleaning and disinfection through Clean-in-Place (CIP) systems or manual cleaning

- Food Safety Certified AISI 304 and 316: Meets FDA, USDA, EU and other international standards

Durability & Reliability

- Corrosion Resistance: Withstands humid cooling environments and cleaning chemicals

- Automated Robot Welding: Less wear on spiral system cage bar caps, 30% longer lifespan

- Engineering Construction: Modular design for easy installation and maintenance

- Temperature Stability: High-tensile strength links for a variety of applications

Customization & Support

- Tailored Solutions: Custom-designed to match your specific production requirements

- Technical Expertise: Engineering support from design to installation

- Global Supply: International shipping worldwide

Application Area

Baking Food Processing

Proofing, cooling, freezing and conveying of bread, pastries, cookies, and pizza production lines.

Meat and Poultry Processing

Freezing, cleaning, pickling, cooking, and packaging lines.

Frozen Food and Prepared meals

Frozen pizza, ice cream, frozen vegetables, ready-made meals and ready to eat meal box production line.
