Compact Space Efficiency Maximization Solution

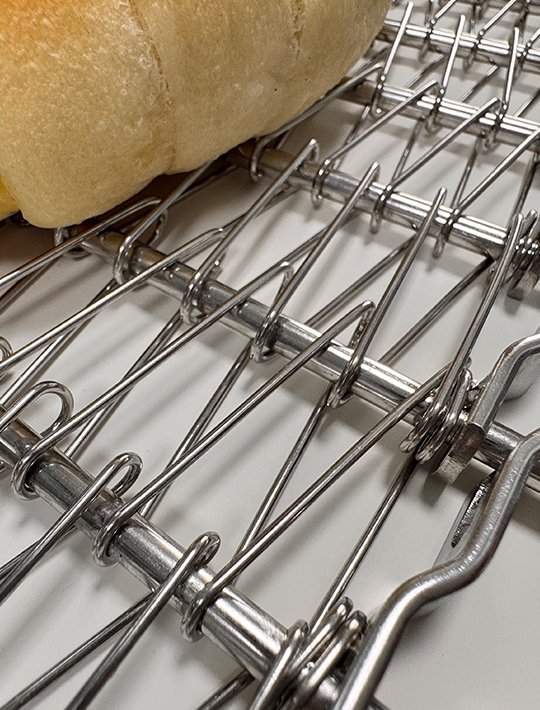

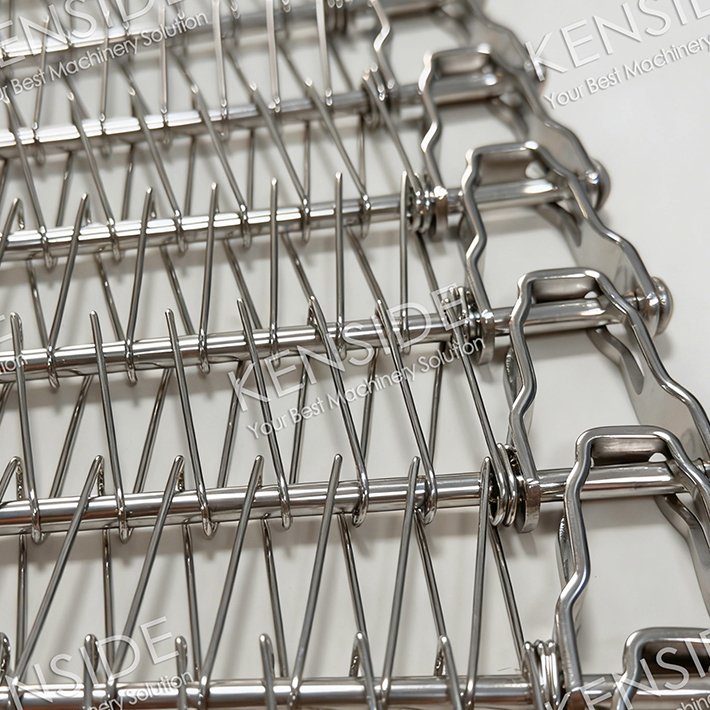

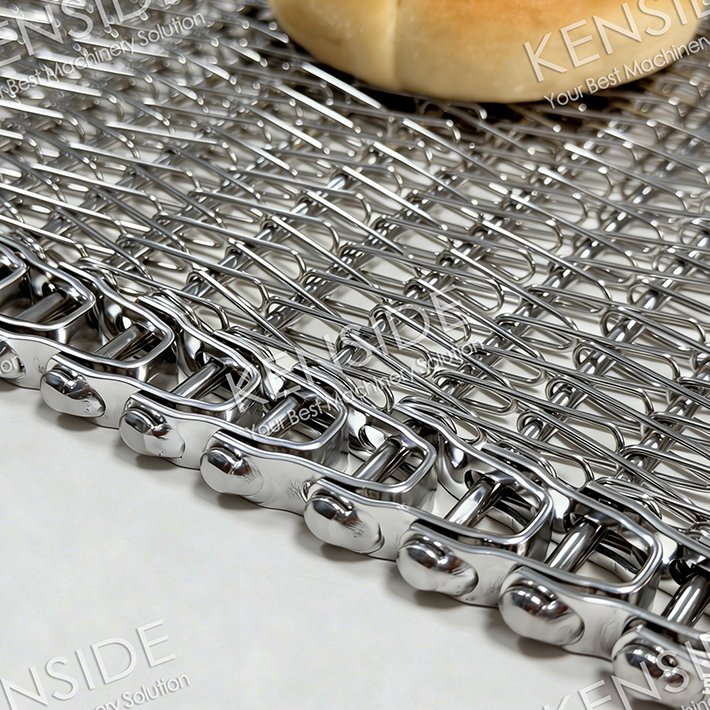

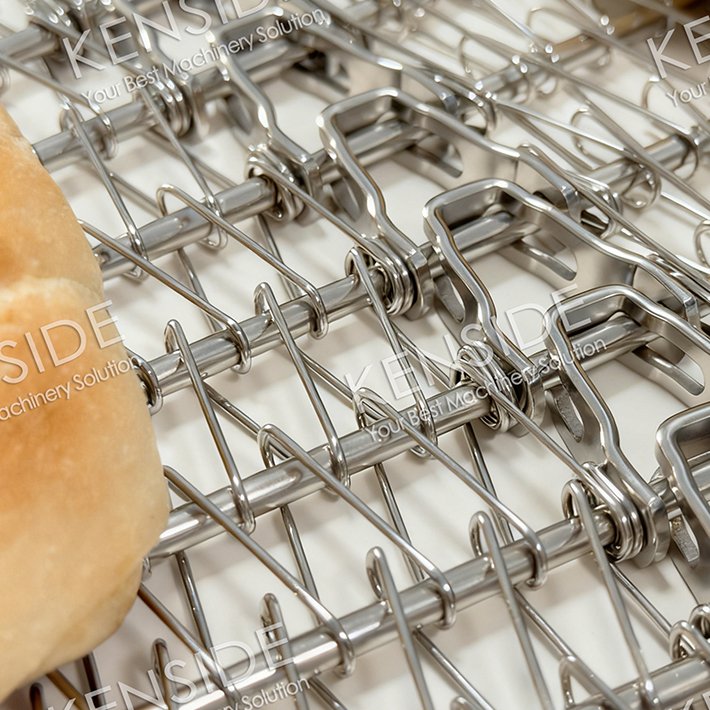

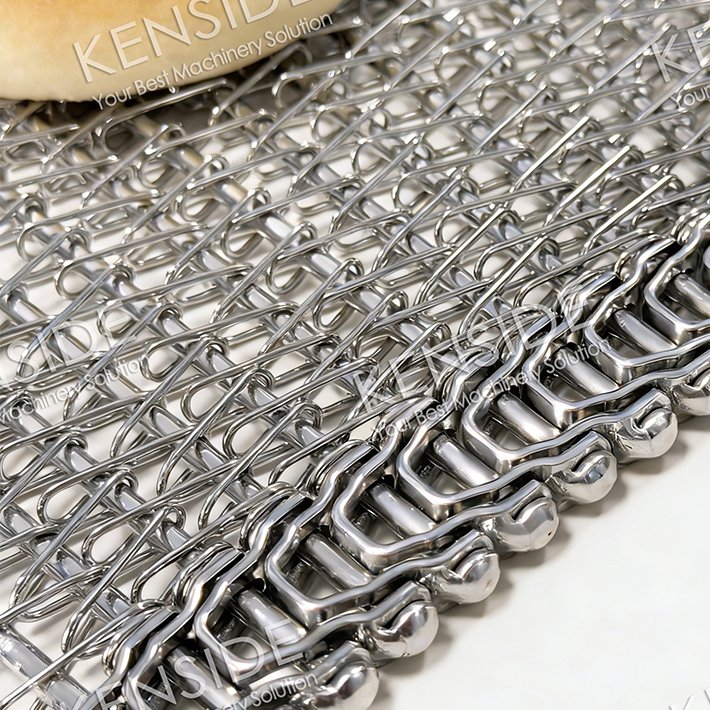

KSD® Small Radius Spiral Belt Series is an engineered stainless steel conveyor belt specifically designed to tight turns. Its core innovation is a smaller turn ratio, meaning the belt can turn in a radius as small as 0.8 or 1.1 times its width.

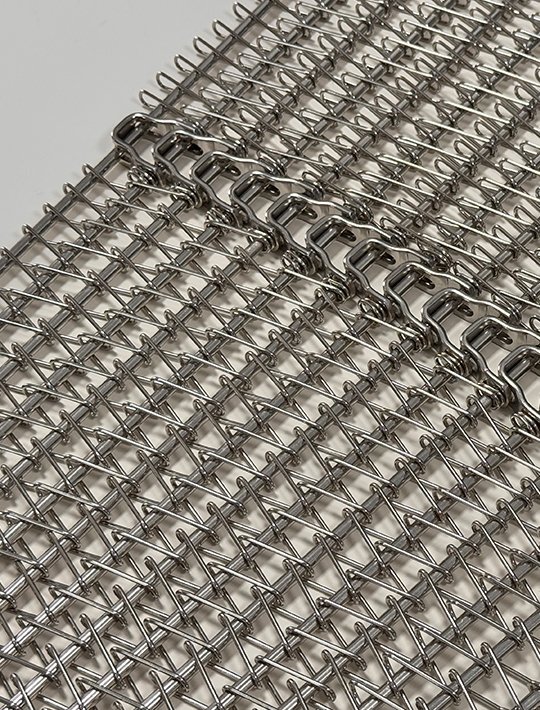

Reasonable and lightweight design makes it easy to install and replace
Significantly increasing lifespan and reducing maintenance requirements
Belt can turn in a radius 0.8 or 1.1 times of its width
Ideal space-saving solution for limit facilities
| Belt Width | 304.8mm - 1,524mm |
| Turn Ratio | 0.8 - 1.0, 1.1 - 2.0, 1.1 - 1.59 |
| Rod Pitch | 19.05mm, 27.4mm, 38.1mm |
| Rod Diameter | 4.9mm, 5.0mm, 6.0mm, 7.0mm |
| Wire Diameter | 1.2mm, 1.4mm, 1.5mm, 1.6mm, 1.7mm, 1.8mm |
| Spiral Pitch | 4.23mm, 6.35mm, 8.5mm, 10.16mm, 12.7mm, 15mm, 20mm |
| Link Height / Side Guard | 12.7mm, 19mm, 25.4mm, 38.1mm |
| Link Thickness | 2.0mm, 2.5mm, 2.7mm, 3.0mm, 3.3mm |
| Edge Finish | Welding |
| Surface Treatment | acid washing and degreasing, passivation or electro-polishing |
| Material | food grade stainless steel AISI 304 / 304L, AISI 316 / 316L |
Electropolishing or passivation surface treatment makes the entire belt surface smooth and free of burrs, open mesh structure facilitates quick and easy cleaning and disinfection, either through automated Clean-in-Place (CIP) systems or manual cleaning, effectively prevent bacterial accumulation and food residue buildup.
The mesh is made of high tensile strength spring wire, which can withstand high product loads, has good air circulation effect, and can withstand extreme temperatures (-40 ° C) or in baking or cooking ovens, it has good stability.

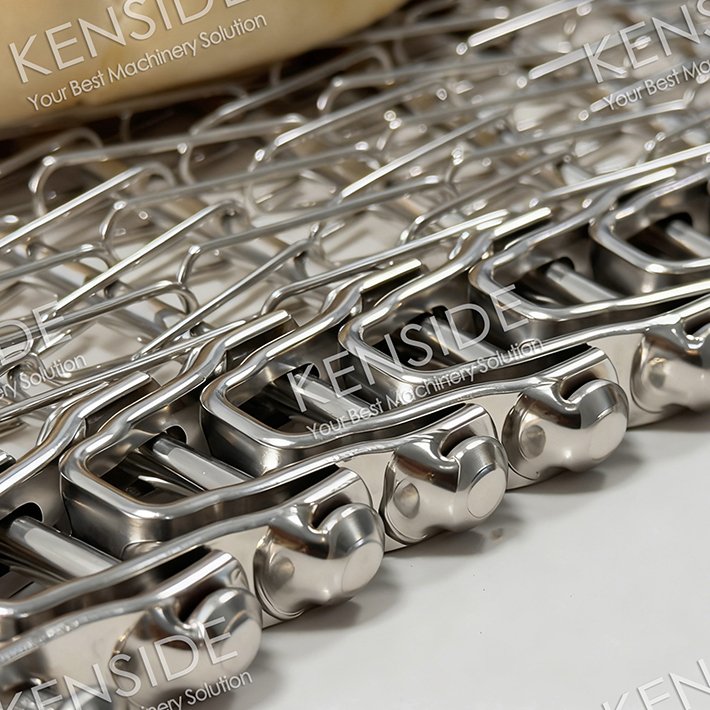

Made by hot upset / hot forging, the rod end is smooth and consistent, and automatically welded by automatic robot, the welding points are strong and firm, ensuring durability and extending service life - which is crucial for reducing downtime and maintenance costs.
Spiral freezers, tunnel freezers or Individual Quick Freezing (IQF) of meat, seafood, poultry, vegetables, etc
Spiral cooling for bakery products, desserts, confectionery, prepared meals, ready meals, etc.
With excellent spiral performance, KSD® Flat Wire Spiral Belt (also known as honeycomb belt) is a stainless steel spiral belt for food processing
KSD® flat flex belt is one of the earliest conveyor belts used in the transportation industry
KSD® Eye Link Belt is a representative product in hygienic material handling for the food processing industry with a long history of development.
KSD® Wire Mesh Belt is a popular mesh design, highly versatile in almost all manufacturing industry.
