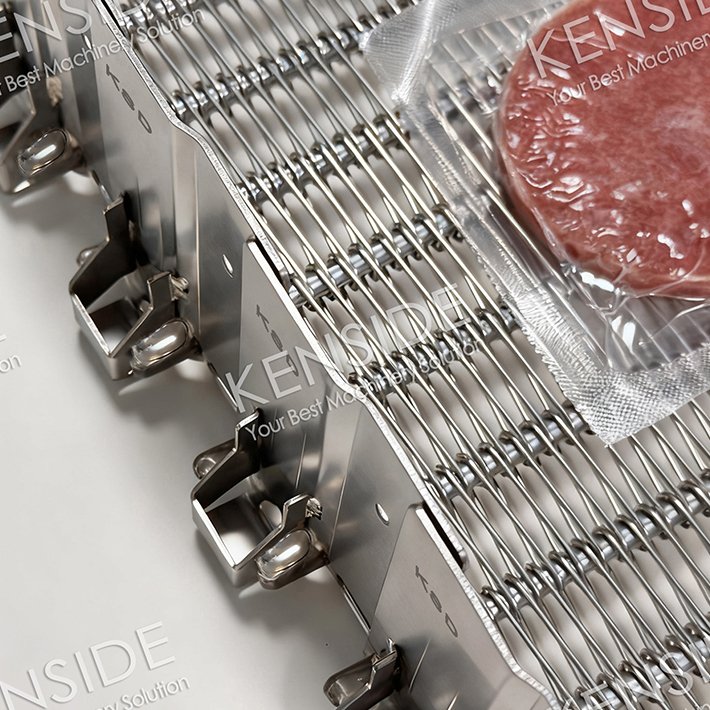

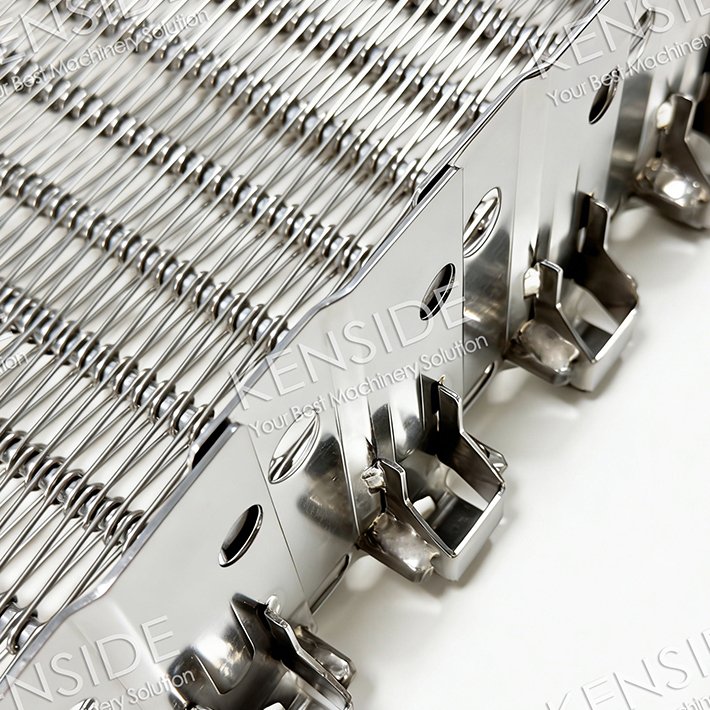

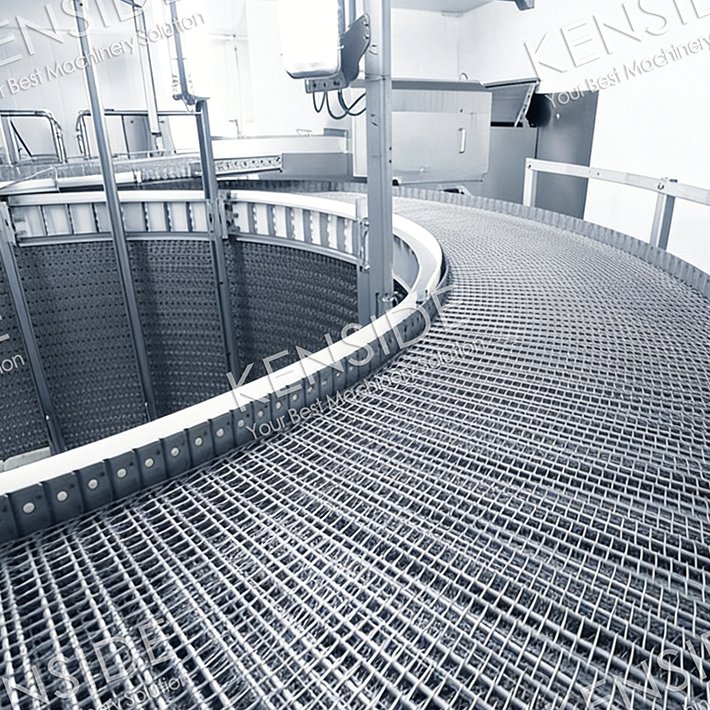

Heavy Duty Self Stacking Belt

More Wider, Higher and Larger product load capacity

As a popular conveyor belt in food processing industry, KSD® Self Stacking Belt can operate in either Counter-ClockWise (CCW) or ClockWise (CW) turn directions. Its unique compact design for high-density stacking maximizes space utilization while delivering cost-effective, high-quality food processing solutions for applications like freezing, cooling, and dough proofing - greatly increase efficiency and maximize production, make your food processing More Efficient and Energy-Saving.

Inquire Now Add To Cart

Overview

Compared with traditional spiral conveyor belt, the advantages of revolutionary self stacking belt are obvious - more larger throughput, higher energy efficiency, smaller footprint, easier maintenance and replacement with lower cost. Standard duty self stacking belt is designed to fit customer’s existing stacker systems - OEM’s stacker systems, available in all standard belt widths, tier heights and mesh sizes, can be spliced for sectional or complete belt replacements without any modification to drive systems. All parts including links, rods, mesh are manufactured by superior food grade stainless steel - hygienic and durable, providing innovative solutions for your food processing applications.

Construction & Design

Robust Construction for The Most Demanding Food Processing Environments Focus On Food Safety

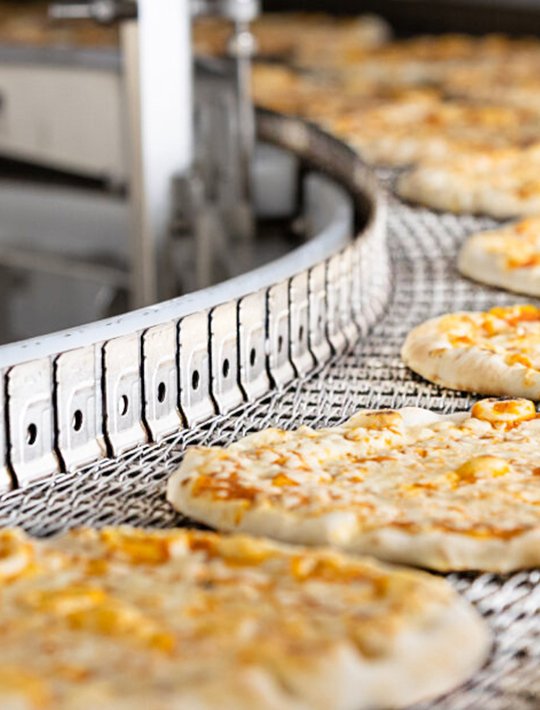

Unique Compact Design

More larger throughput
Higher energy efficiency
Smaller footprint
Easier maintenance and replacement
Lower cost

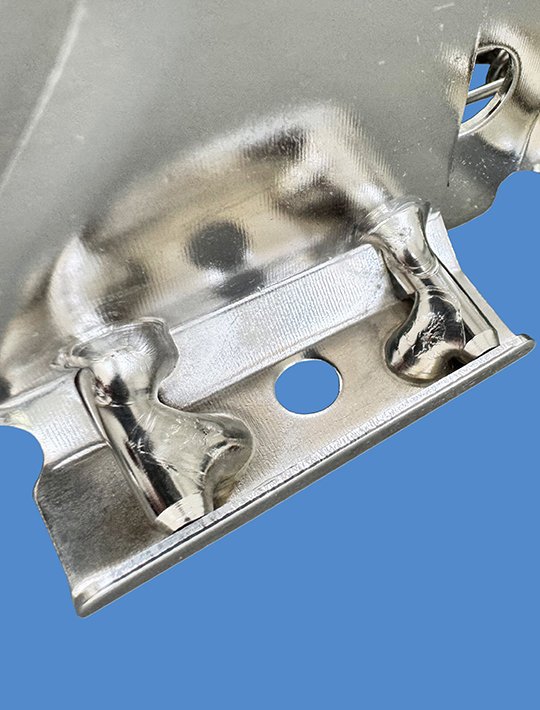

Robust And Solid Weld Joint

Our precision-engineered welds deliver unmatched strength, eliminating the risk of joint failure.
Each weld joint is meticulously crafted to be robust and solid, providing high-strength connection between belt components.

Technical Specifications

Turn Capability	clockwise(CW) or counter-clockwise(CCW)
Material	all parts rods, mesh, links in food grade stainless steel 304 / 316
Belt Width	760mm, 920mm, 930mm, 1060mm, 1070mm or customized
Rod Diameter	6, 7mm
Pitch	rod pitch is 30mm, link pitch is 59.9mm
Wire Diameter	1.2, 1.4, 1.5, 1.6, 1.7, 1.8mm or customized
Spiral Pitch	6mm, 9mm, 13mm, 20mm or customized
Tier Height	80, 100, 120, 150, 180, 220mm or customized
Turn Ratio	1.92 for 7mm rods / 1.75 for 6mm rods (by turn radius/belt width)

Features and Advantages

Hygienic, Smooth and Burr-Free Finish

Electropolishing or passivation surface treatment makes the entire belt surface smooth and free of burrs, open mesh structure facilitates quick and easy cleaning and disinfection, either through automated Clean-in-Place (CIP) systems or manual cleaning, effectively prevent bacterial accumulation and food residue buildup.

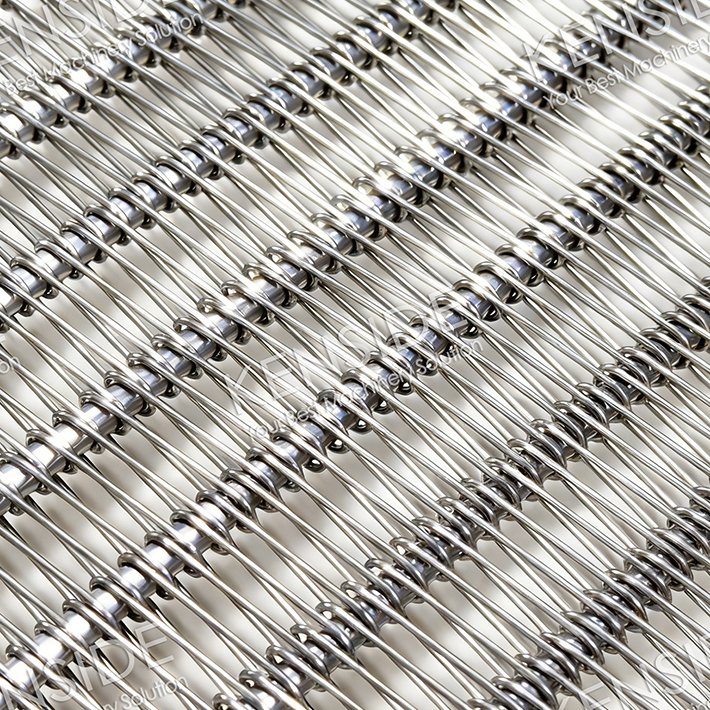

Uniform Mesh, Flat Mesh Surface, Resistant to Deformation

The mesh is made of high tensile strength spring wire, which can withstand high product loads, has good air circulation effect, and can withstand extreme temperatures (-40 ° C) or in baking or cooking ovens, it has good stability.

Durable and Long-lasting

Made by hot upset / hot forging, the rod end is smooth and consistent, and automatically welded by automatic robot, the welding points are strong and firm, ensuring durability and extending service life - which is crucial for reducing downtime and maintenance costs.

Application Area

Baking Food Processing

Proofing, cooling, freezing and conveying of bread, pastries, cookies, and pizza production lines.

Meat and Poultry Processing

Freezing, cleaning, pickling, cooking, and packaging lines.

Frozen Food and Prepared meals

Frozen pizza, ice cream, frozen vegetables, ready-made meals and ready to eat meal box production line.
