Hygienic, Durable & Customizable for Modern Food Processing
(0) Reviews

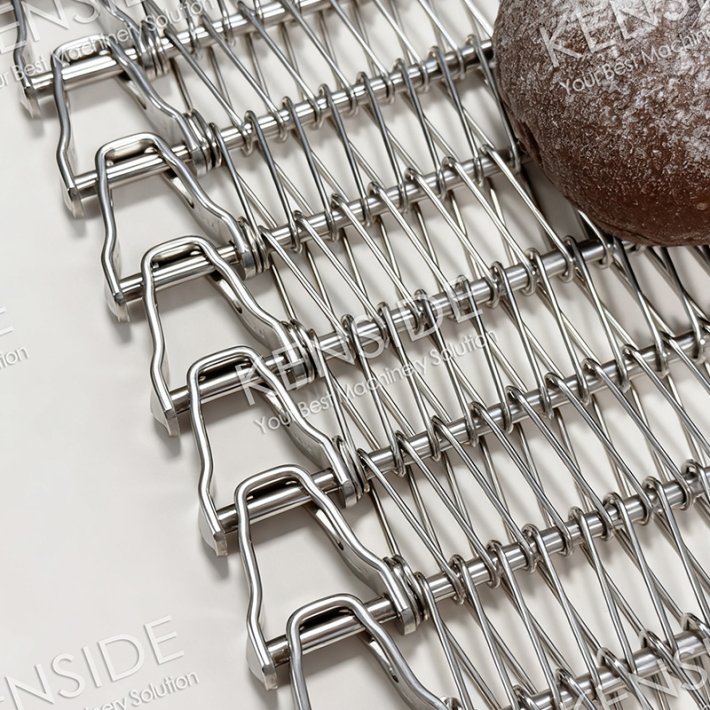

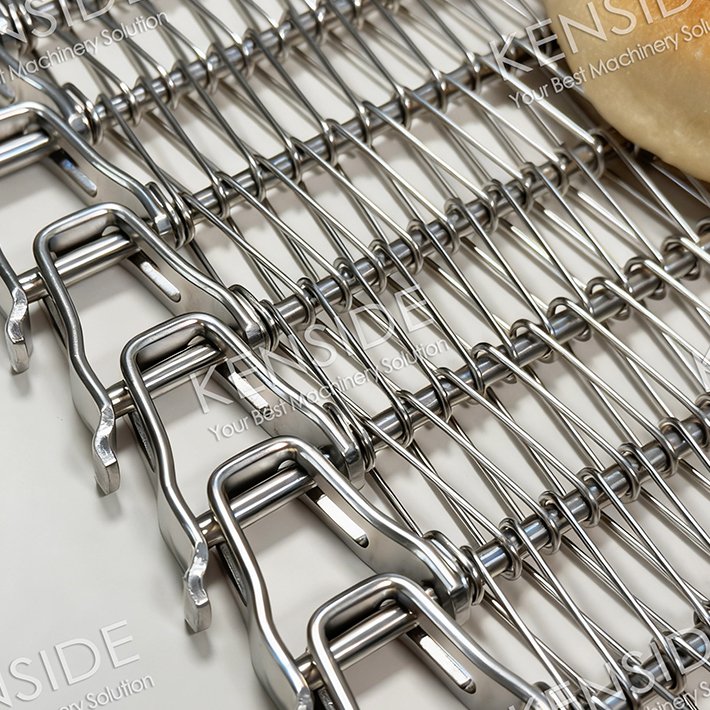

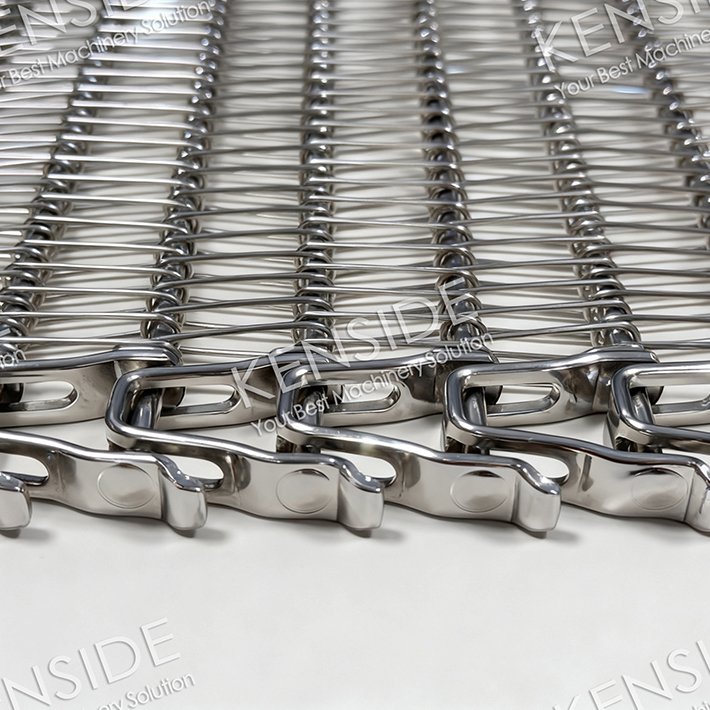

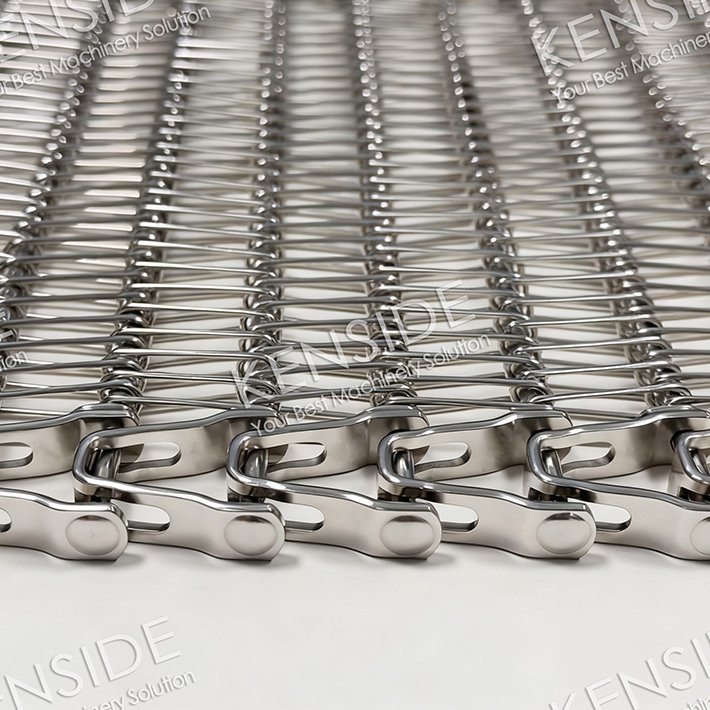

KSD® 360 Weld Spiral Belt represents the next-generation revolution in hygienic metal conveyor belt technology. Featuring a specialized link design and welding process, it effectively prevents residue buildup and is easy to clean, marking a significant leap forward in stainless steel conveyor belt technology.
360 Weld Spiral Belt specifically engineered for high-tension spiral applications, this belt is designed to run smoother, stronger, and longer, directly addressing core challenges in capacity, maintenance, and hygiene. It stands as the optimal choice for the industrial food processing industry in pursuit of maximizing efficiency and meeting stringent sanitary standards.
Utilizing a proprietary hygienic metal conveyor belt structure

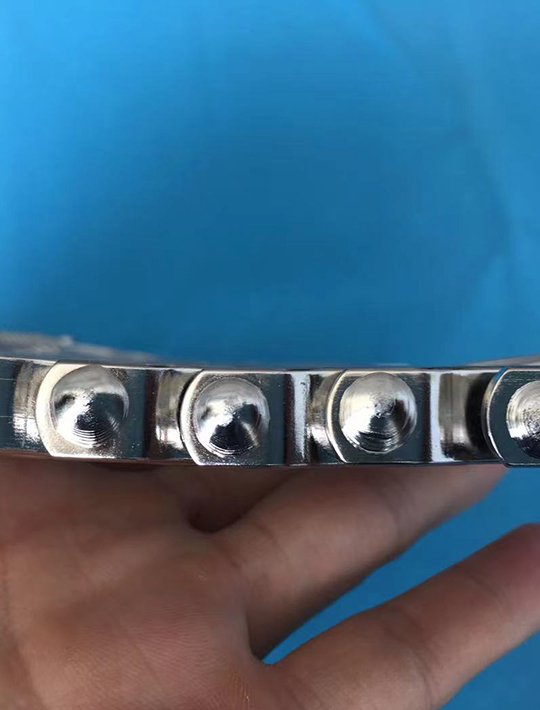

Seamless welding is free from surface defects, cracks
Eliminating potential bacterial harboring points

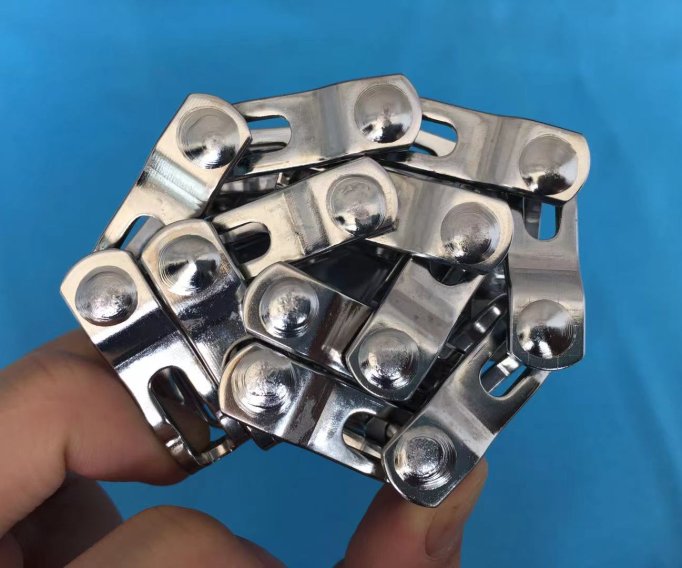

The unique coining process and zero-tension design prevent break-in wear and reduce belt elongation
It minimizes wear on spiral system cage bars, thereby substantially reducing maintenance requirements and downtime
| Belt Width | 304.8mm - 1,524mm |
| Turn Ratio | 1.6 - 3.5 |
| Rod Pitch | 19.05mm, 27.4mm, 30mm, 30.5mm, 38.1mm, 40mm |
| Rod Diameter | 4.9mm, 5.0mm, 6.0mm, 7.0mm |
| Wire Diameter | 1.2mm, 1.4mm, 1.5mm, 1.6mm, 1.7mm, 1.8mm |
| Spiral Pitch | 4.23mm, 6.35mm, 8.5mm, 10.16mm, 12.7mm, 15mm, 20mm |
| Link Height / Side Guard | 12.7mm, 19mm, 25.4mm, 38.1mm |
| Link Thickness | 2.0mm, 2.5mm, 2.7mm, 3.0mm, 3.3mm |
| Edge Finish | Welding |
| Surface Treatment | acid washing and degreasing, passivation or electro-polishing |
| Material | food grade stainless steel AISI 304 / 304L, AISI 316 / 316L |
The stainless steel materials and design comply with FDA, EU, and NSF/3-A sanitary standards for food and pharmaceutical metal conveyor belts. The smooth, seamless surface is easy to clean and aligns with stringent hygienic conveyor belt standards and HACCP protocols.

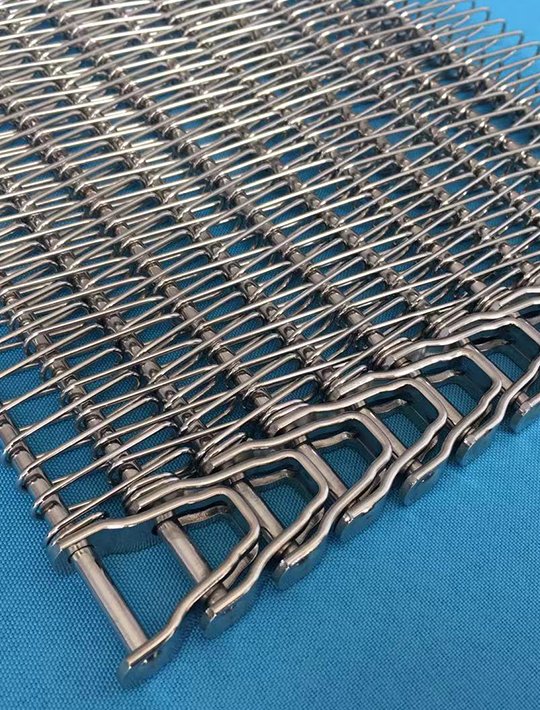

With exceptional structural integrity, it supports higher product loads, enabling maximum throughput in the most demanding spiral applications.
The substantially extended belt lifespan, combined with reduced wear on both the belt and the conveyor system itself, leads to a notable decrease in maintenance costs and unplanned downtime.
Our food-grade stainless steel conveyor belts, manufactured under strict quality standards EU and FDA, are widely used in frozen food factories, meat processing plants, pre-packaged food production, and equipment manufacturing.
Our food-grade stainless steel conveyor belts, manufactured under strict quality standards EU and FDA, are widely used in frozen food factories, meat processing plants, pre-packaged food production, and equipment manufacturing.
Contact our engineering team for a custom solution tailored to your production requirements.
